UniLine 260

Product Description

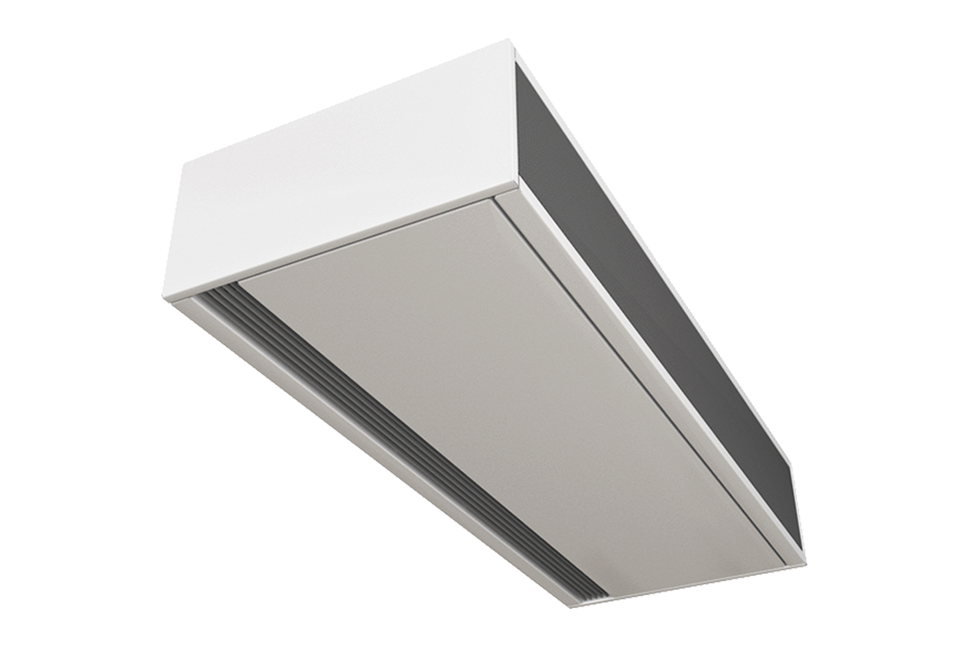

Door air curtains with casings for visible installation. For all standard applications.

Key Features

• Low investment, top performance.

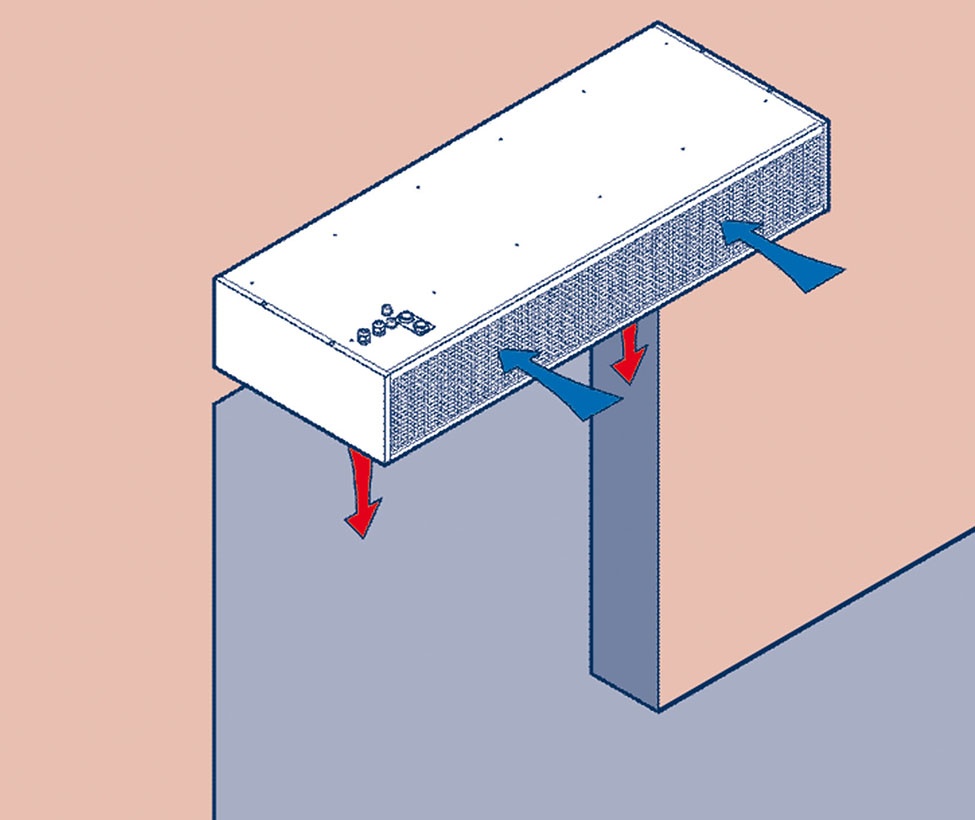

• For controlled screening of cold air with open doors.

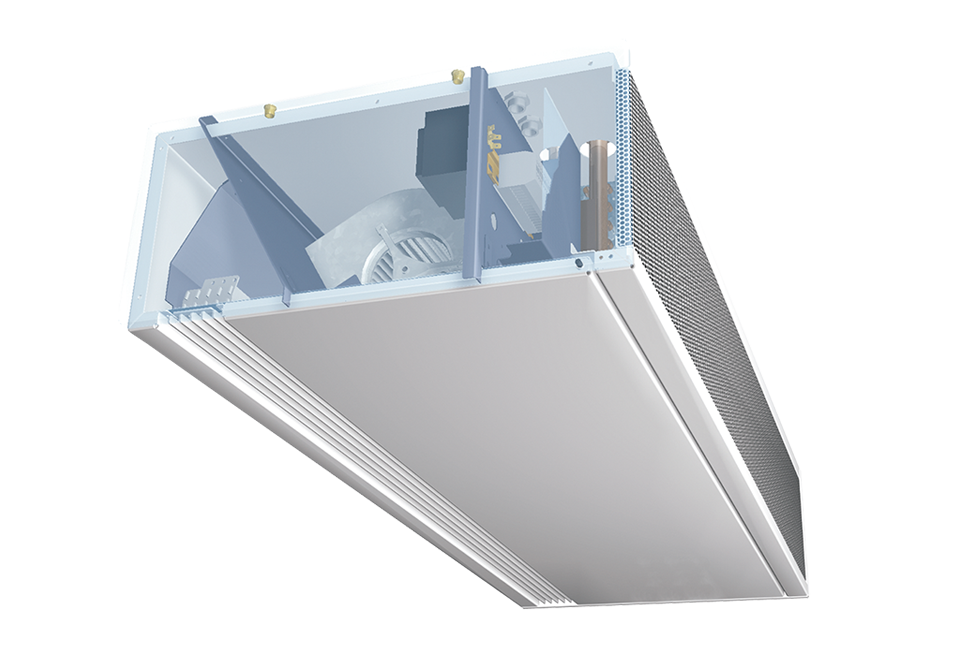

• Unit and casing, including top panel, form a compact unit.
• Air screening reduces energy losses and increases comfort in your entrance area.

Your Benefits

• Filter can be changed with easewithout a tool.
• Water and electrical connection protrude out of the top of casing
• Air curtain and casing form acompact unit.

Technology

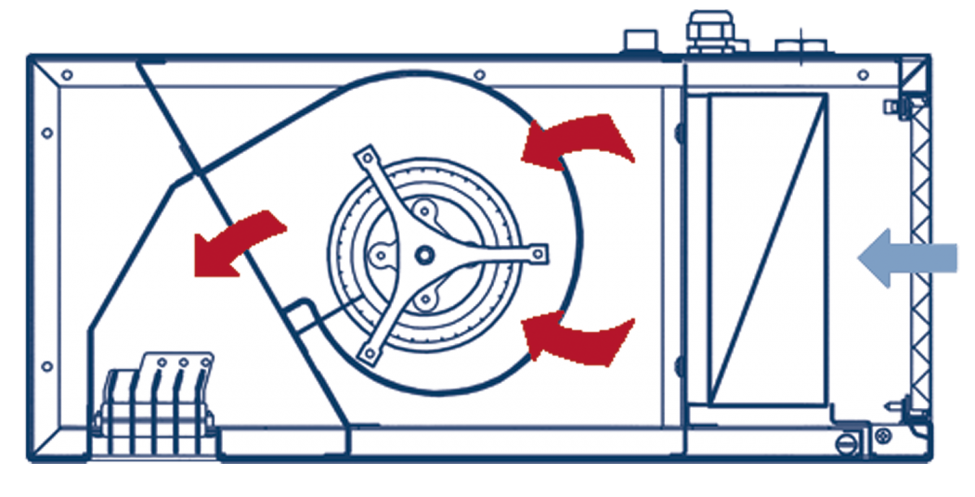

• High-performance radial fans for high air output, wired ready for connection, switchable between 5 stages.
• High-performance copper/aluminium heat exchanger.
• Air intake grille opens without the need for a tool, with safety cable, straightforward filter replacement without tools.
• Easily removable air filter (grade G 2 in line with DIN EN 779); easy to clean by vacuuming or washing.
• Anti-torsion mechanism for heating connections prevents damage to the heat exchanger when screwing in the valves; valves optionally available as accessories.

Areas of application/installation

• Cost-effective design for use in DIY stores, garden centres, showrooms and sales floors.
• Single unit, encased for wall-mounting or ceiling-mounting, free-hanging.
• Lengths 1.0, 1.5, 2.0, 2.5 and 3.0 m.
• Suitable for mounting heights ranging from 2.3 to 3.0 m

Also good to know

• Lower casing panel, hinged for ease of maintenance.
• Casing powder coated in RAL 9016 traffic white; air intake grille and outlet air rectifier in RAL 9006 white aluminium.
• KaControl system or electromechanical control possible.
• Integration in KaControl networks or building automation systems, such as BACnet, Modbus or LON possible.
