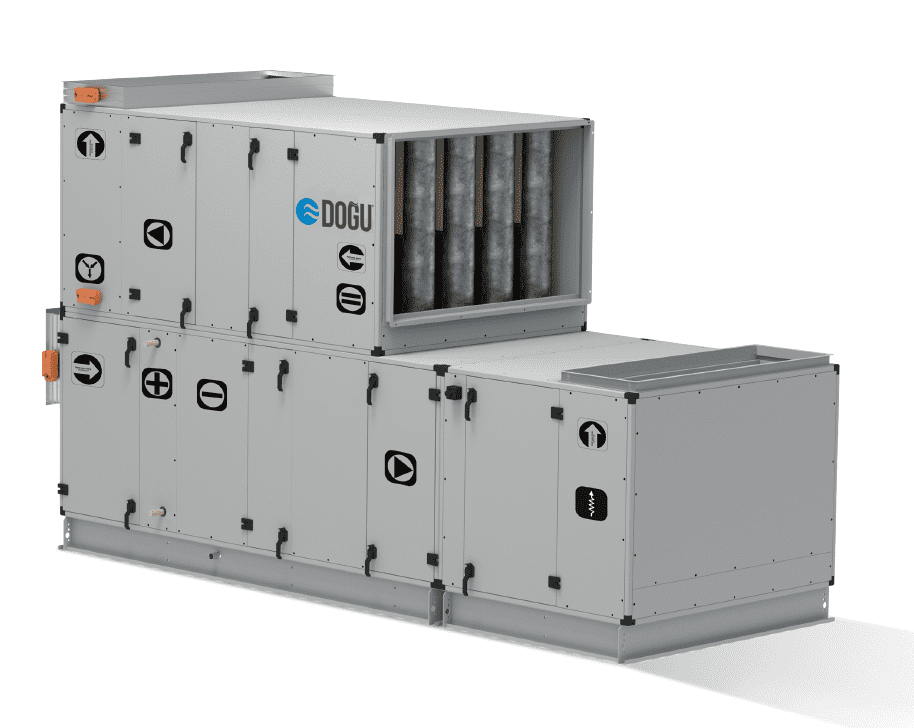

DOGU Air Handling Unit
Energy Efficient and Modular Solutions

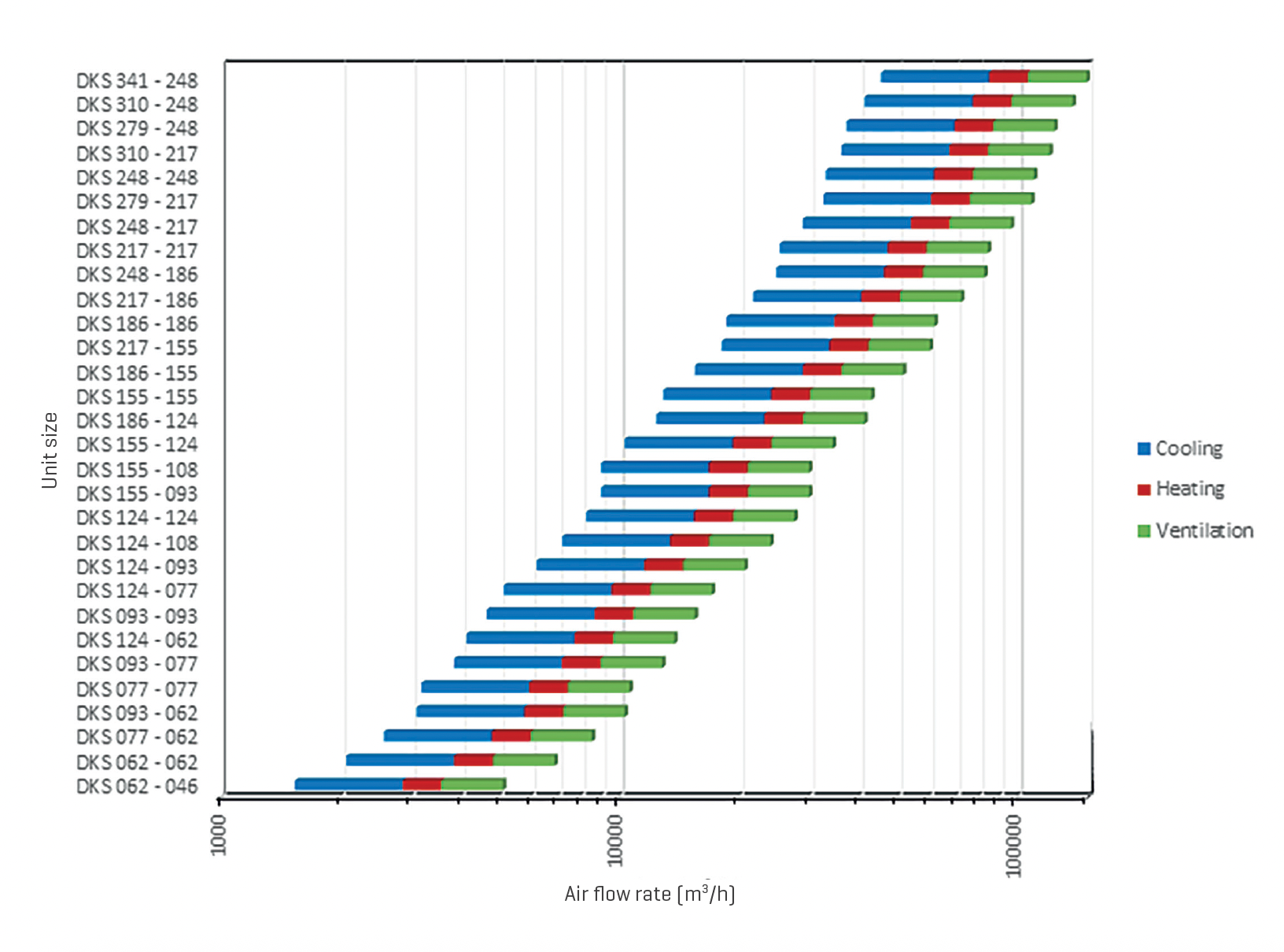

Doğu Air Handling Units are manufactured in 30 different sections. The flow range is determined as 800-80,000 m³/h for cooling and ventilation purposes, and 1,000-100,000 m³/h for heating and ventilation purposes.
Modular and Customizable Structure
Thanks to their modular structure, our air handling units can be produced with 50 mm or 60 mm thick panels with rock wool, glass wool, or polyurethane insulation according to the request and application. Exterior surfaces are made from painted sheet metal in standard RAL 9006 color, while the interior surfaces offer options such as galvanized painted or stainless steel. Its flat interior surface is easy to clean and prevents dust accumulation.
Robust and Sealed Structure
The frame of the air handling units is made of specially designed electrostatic oven-painted aluminum or steel profiles and plastic/aluminum corner connectors to provide a robust structure. EPDM-based gaskets are used to ensure sealing.
Features:
- 50 mm aluminum profile and 60 mm steel profile options
- Double-skin panel structure
- Use of galvanized painted or stainless steel according to the application
- Fan-motor group selection based on air flow rate and total static pressure for optimal efficiency
- Greater energy savings with rotary, plate, coil heat recovery, or mixing cell
- Free cooling applicability
- Filtration, heating, cooling, humidification, and quieter operation options to suit the environment
- Safety-protected lighting and viewing glass service doors for fan motor and filter cells for maintenance
- Compatible automation infrastructure with “Four Seasons by DOGU” VRF outdoor unit.
For further information on this exciting new range please contact us.
