ULTRA

Product Description

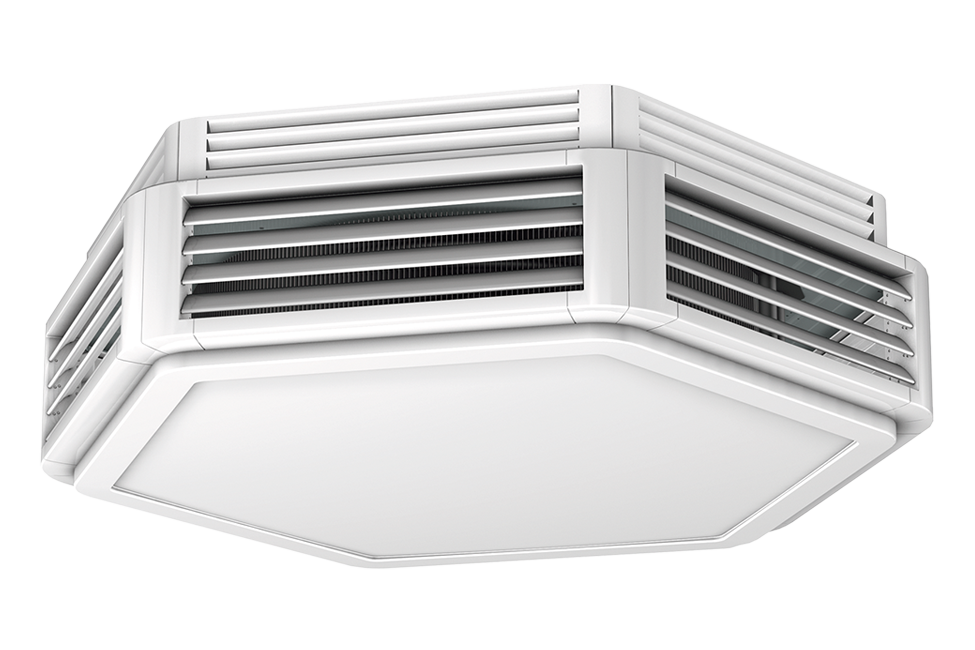

Ceiling unit for heating, cooling and ventilation in large, high-end spaces. For the ultimate in design and comfort.

The Ultra with its hexagonal design is suitable for efficient, responsive air conditioning in consumer markets and other spacious interiors with high ceilings.

Key Features

• Contemporary, updated housing design.
• Only 330 mm high.

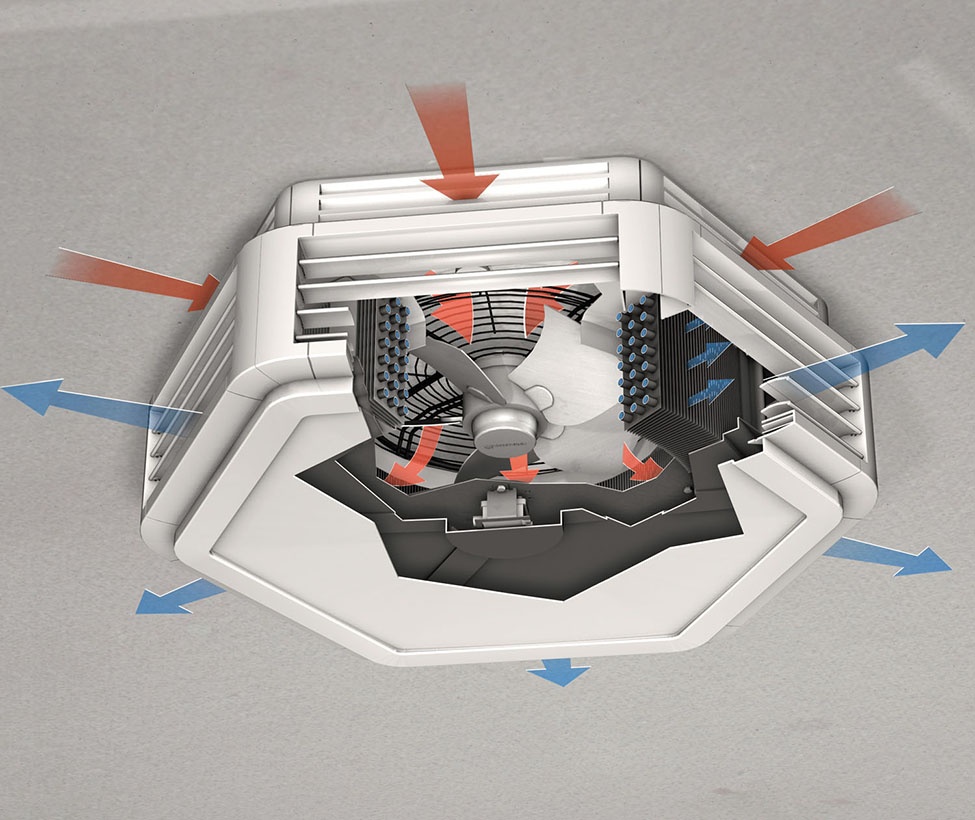

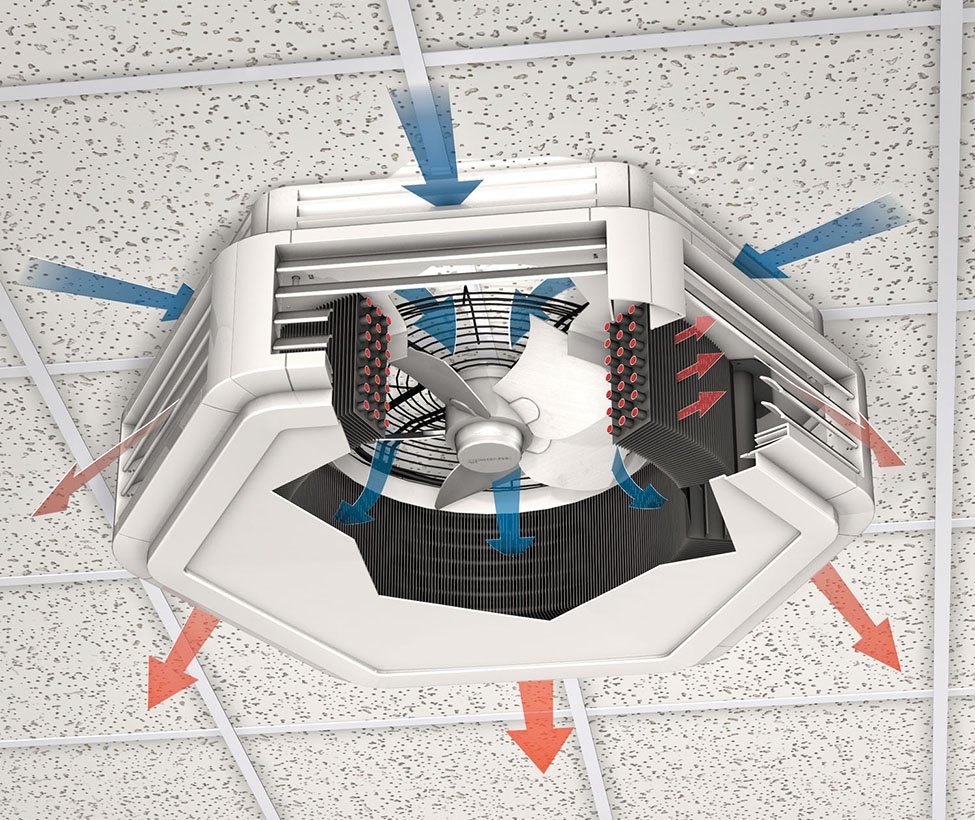

• For recirculating air or mixed air operation, identical design for heating and cooling.
• Lightweight design with plastic housing components, traffic white RAL 9016, other paint finishes on request.
• Electromechanical control or KaControl system possible.
• Can be integrated into KaControl networks or building automation system, such as BACnet, Modbus or LON

Your Benefits

• Minimal height due to circularheat exchanger.
• Design reliability thanks tostandardised accessories.
• Hexagonal housing design foroptimum air distribution when heating and cooling.

Technology

• Heat exchanger in ring-shaped design, outstanding performance from compact dimensions
  • Copper round pipes with aluminium fins.
  • Steel distributor and manifold

• An external rotor motor in the hub of the fan provides 1-phase or 3-phase drive.

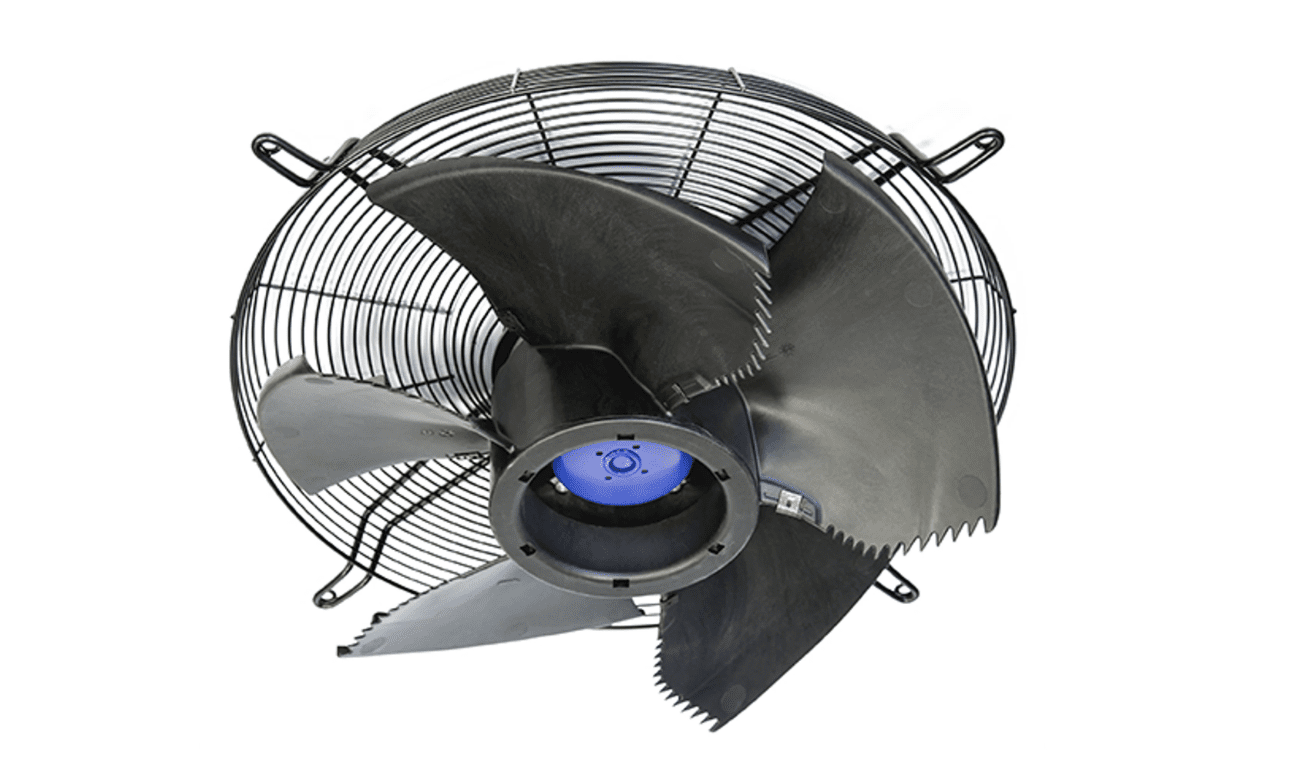

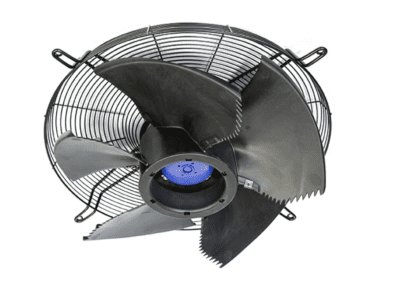

• Whisper-quiet, sickle-blade fans in series 73-96.
• Whisper-quiet, diagonal fans with enhanced pressure in series 97 for mixed air.
• EC fans on request.

Areas of application/installation

• Some typical areas of application include retail chains, showrooms, sales floors and foyers.
• Heating and ventilation of retail outlets within suspended ceilings and with 625 x 625 mm suspended ceiling grids (600 x 600 mm on request).
• Available in three models with a wide output range and also suitable for use with low temperature water.
• In rooms with a ceiling height of approx. 2.3-4 m , where the installation of unit heaters is not possible for aesthetic reasons.

Also good to know

• Induction grille supplied as standard for fitting on site; brackets are ready-mounted.
• With hexagonal air outlet, settable in six defined angles.

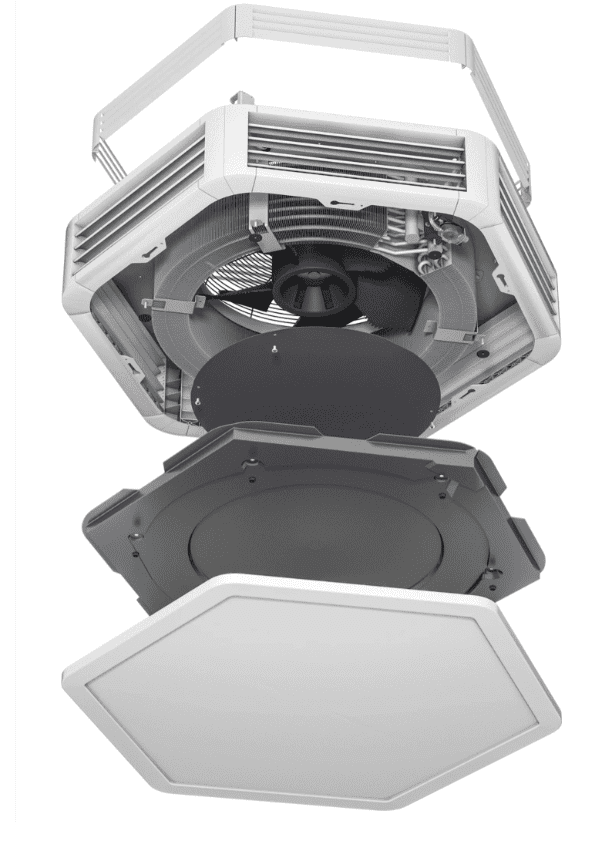

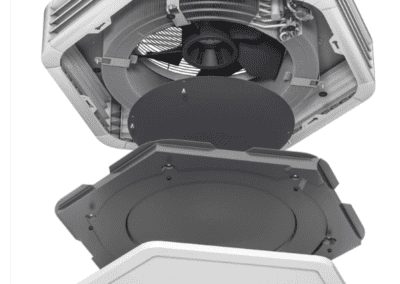

• Base can be simply removed for maintenance purposes.
• Modular accessory components (mixed air).
