Cassette-UniLine

Product Description

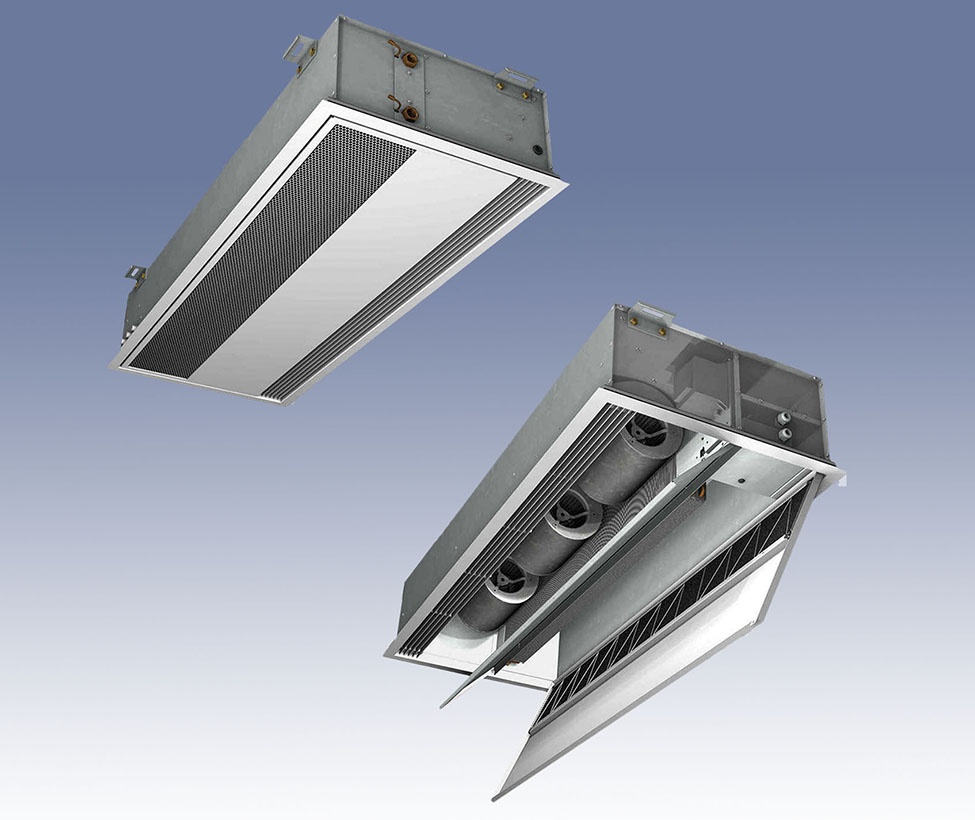

Door air curtains for concealment within the ceiling. For special uses in ceiling grids.

Key Features

• Low investment, top performance.
• Specifically designed for 625 mm or 600 mm acoustic ceiling grids.
• For controlled screening of cold air with open doors.
• Unit and casing form a compact unit.
• Air screening reduces energy losses and increases comfort in your entrance area.

Your Benefits

• Low overall height, equipped withceiling connection.
• Filter can be changed with easewithout a tool.
• Water and electrical connectionprotrude out of the side of casing.

Technology

• High-performance radial fans for high air output, wired ready for connection, switchable between 5 stages.
• High-performance copper/aluminium heat exchanger.
• Mounting brackets for safe and fast installation.
• Simple filter replacement without tools.

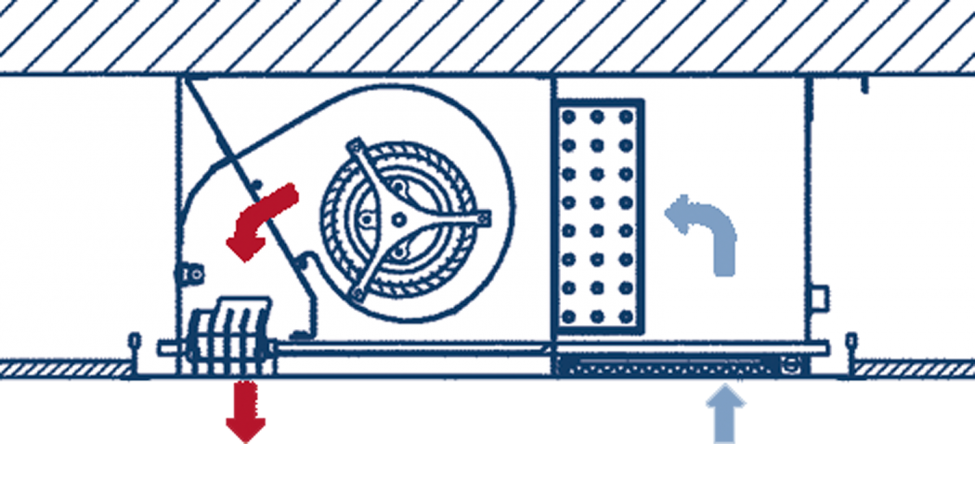

• Electrical and hydraulic connections project through the side of the unit for shallow installation depth.
• Easily removable air filter (grade G 2 in line with DIN EN 779); easy to clean by vacuuming or washing.
• Anti-torsion mechanism for heating connections prevents damage to the heat exchanger when screwing in the valves; valves optionally available as accessories.

Areas of application/installation

• Cost-effective design for use in DIY stores, garden centres, showrooms and sales floors.
• Single unit, encased, for use as a ceiling-mounted unit.
• Lengths 1.0, 1.5, 2.0, 2.5 and 3.0 m.
• Suitable for mounting heights ranging from 2.3 to 3.0 m

Also good to know

• Lower casing panel, hinged for ease of maintenance.
• The deflection grille in the air outlet ensures minimal turbulence and even air discharge.
• Casing powder coated in RAL 9016 traffic white; air intake grille and outlet air rectifier in RAL 9006 white aluminium.
• KaControl system or electromechanical control possible.
• Integration in KaControl networks or building automation systems, such as BACnet, Modbus or LON possible.
