ProtecTor

Product Description

Door air curtains with heated and ambient air streams for screening of large industrial doorways.

Key Features

• Effective cold air screening across open industrial doorways.
• Energy savings of up to 38% compared to conventional systems.
• Fast return on investment with Kampmann door screening.
• Improved use of space close to the doorway.

Your Benefits

• Energy-saving with Tandem
• Coanda effect between theprimary and warm air streams.
• Self-optimising back-up airstream when speed changes.

Technology

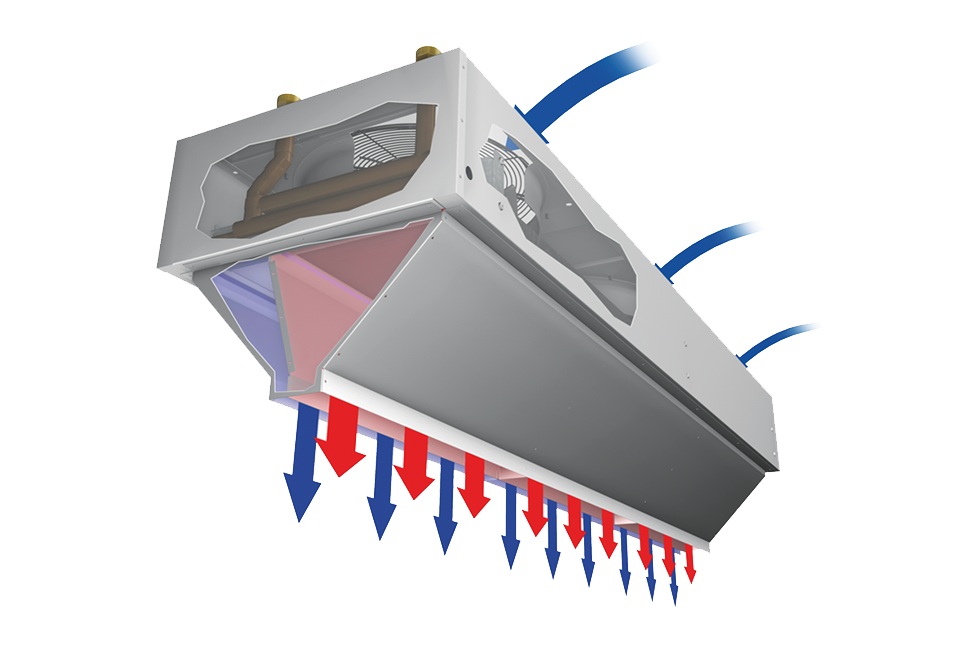

• Coanda effect to improve the penetration depth of both air streams:
  • Ambient air stream pulls the warm air stream.
  • Improved screening and higher installation heights.

• Ambient air stream acts as a back-up air stream: it automatically optimises as the fan speed changes to match the warm air stream.
• Adverse weather stays outside, thanks to the enhanced penetration depth between two parallel air streams of different temperature.
• PowerKon heat exchanger consisting of hollow copper tubes with profiled aluminium special fins.

Areas of application/installation

• Ideal for use incommercial and industrial buildings, warehouses and logistics buildings to prevent uncontrolled loss of energy due to open doorways.

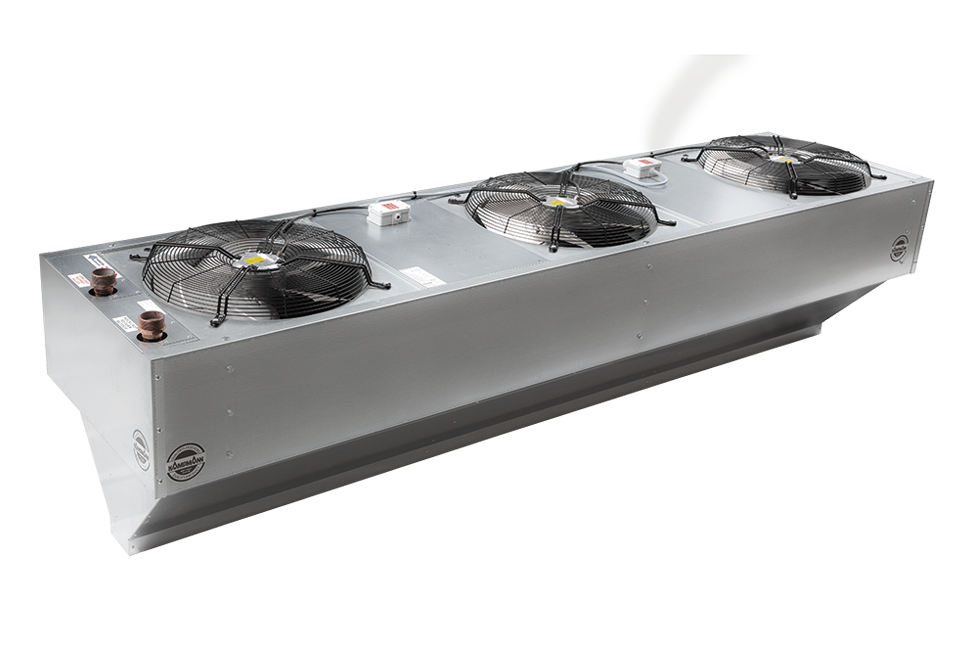

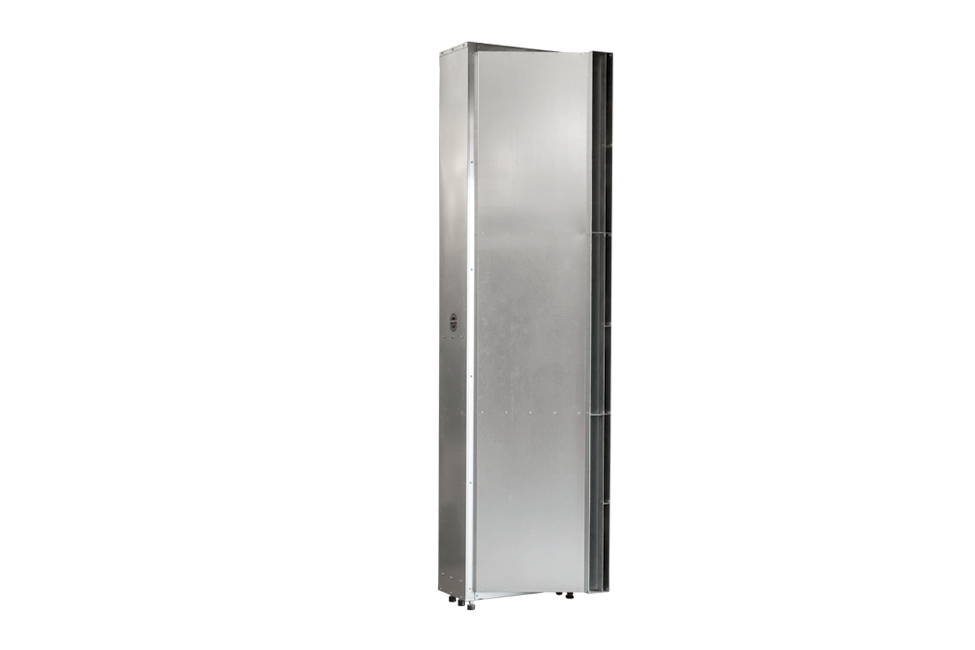

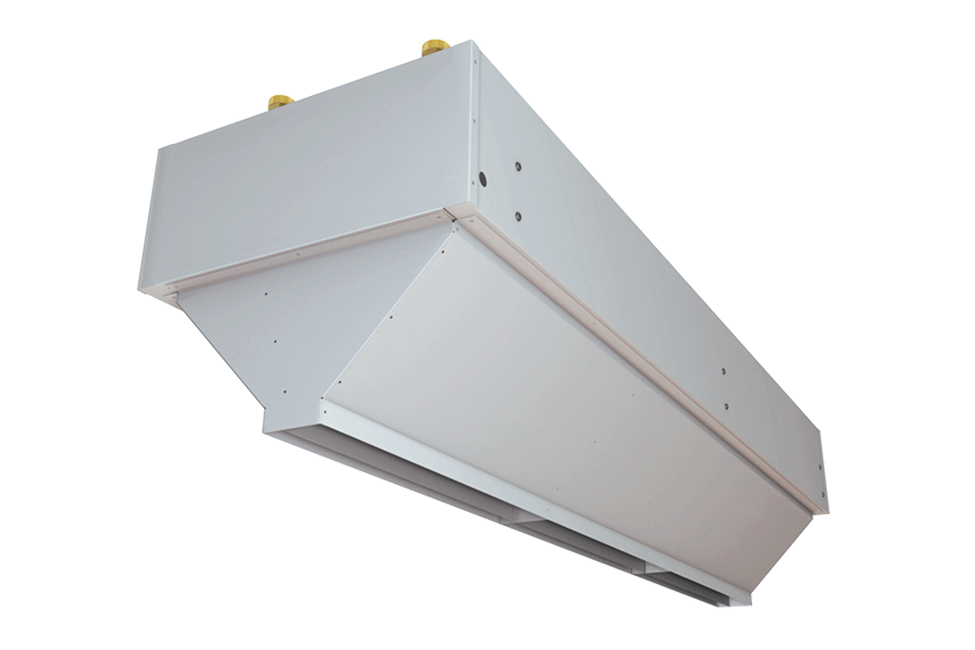

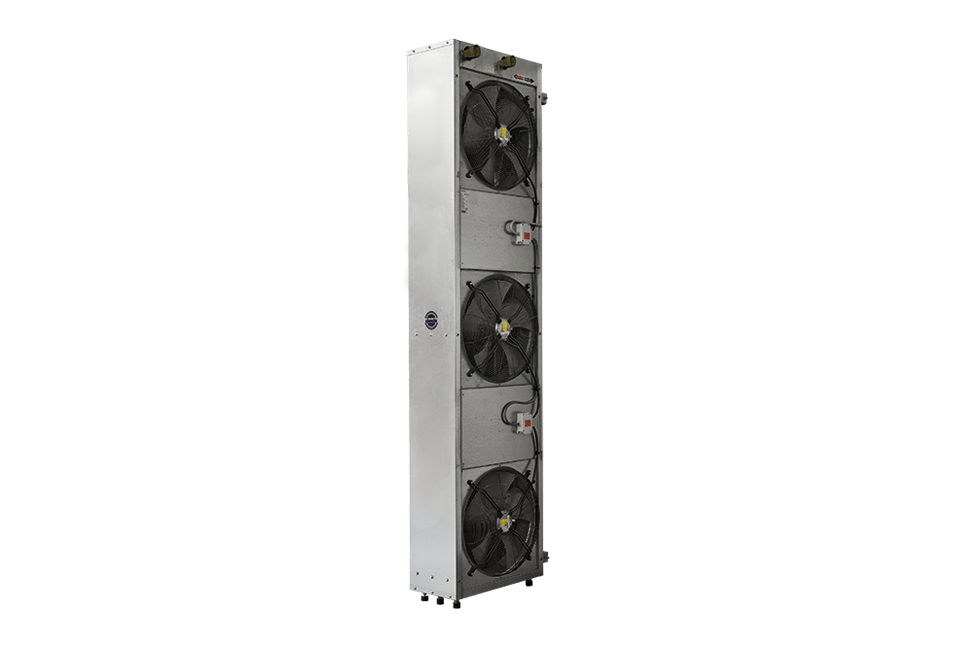

• Single unit, encased, horizontal or vertical model.
• Lengths and/or heights 3.0, 4.0 and 5.0 m.
• Suitable for discharge heights of:
  • 3.5 and 4.5 m (horizontal models)
  • and/or for door heights of 3.25, 4.25 and 5.25 m (standing models)

Also good to know

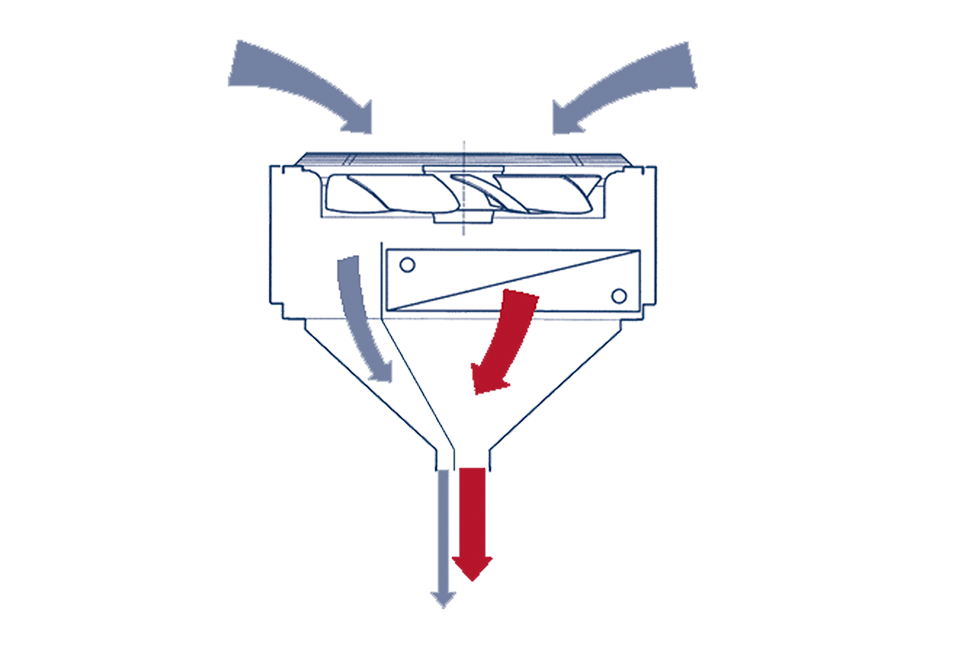

• Airflow configuration with ambient and warm air stream with one fan: patent pending
• KaControl system or electromechanical controllvia stage switch combined with door contact switches.
• Integration in KaControl networks or building automation systems, such as BACnet, Modbus or LON possible.
• Special designs on request.
