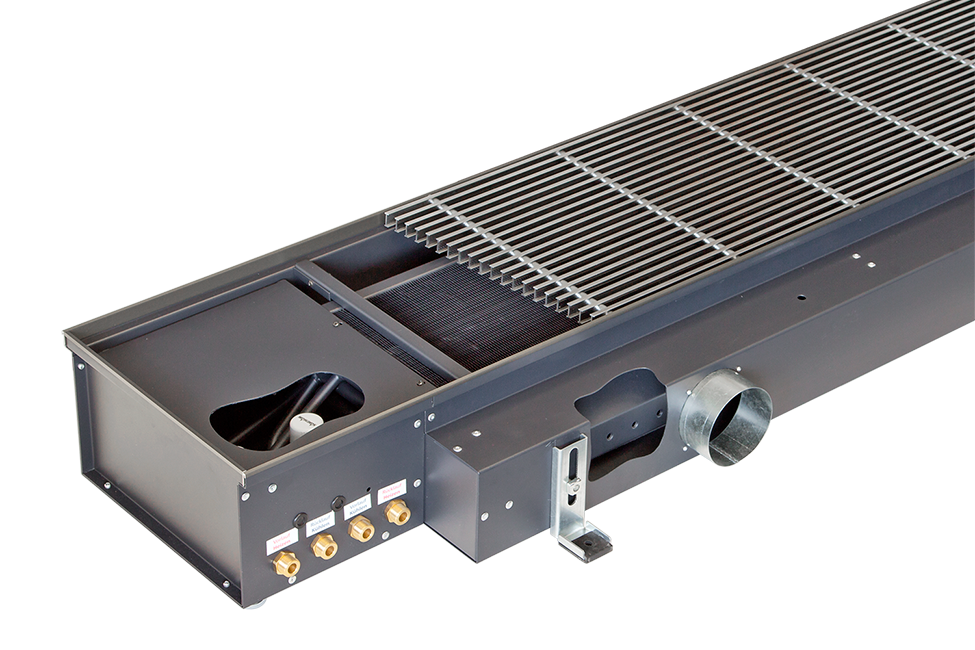

Katherm ID

Katherm ID
Katherm ID

Product Description

Trench heating used as induction duct. Supply of primary air and induction of secondary air.

Key Features

  • Low noise operation thanks to sound-optimised nozzles.
  • Low investment costs (saving of rotating parts and motors).
  • Low maintenance costs.
  • Ideal when combined with slower systems, such as concrete core activation.
  • Low noise supply air with post-heating and cooling.
  • Amatching edge profile for a perfect design with every grille.

Your Benefits

  • Extremely quiet thanks to airflow-optimised nozzles.
  • Low investment and maintenancecosts.
  • Introduction of supply air withpost-cooling/heating by induction.

Technology

  • Induction floor ducts for effective ventilation, heating and cooling.
  • Convector with supply air connection for the supply of preconditioned primary air.
  • Conditioned supply of primary air ensures a fresh indoor climate at all times of the year.
  • Effective cold air screening of large windows.
  • Achoice of air connection: 1 or 2 supply air spigots, each Ø 100 mm, room-side.
  • Special mounting feet for variable height adjustment.

Areas of application/installation

  • Primarily used in office and administration buildings.
  • Space-saving thanks to the installation of ducts in the raised floor, thereby making better use of the space.
  • Trench lengths: 800 mm, 1000 mm, 1200 mm, 1400 mm and 1600 mm.
  • Overall frame width: 340 mm and trench height: 180 mm, other dimensions on request.
  • 4-pipe system (2-pipe system on request).

Also good to know

  • Project solutions are available for all geometries with mitred corners, curved designs, column recesses or chamfered trenches.
  • Replaceable nozzles for adaptable air volumes following a change of use.
  • Possible subsequent installation and maintenance of volumetric flow limiters in the supply air box.
  • Supply lines can be run within the raised floor.
