Vario

Product Description

Door air curtains for a range of installations. Available with a range of different casings.

Key Features

• For controlled screening of cold air with open doors.
• Improved use of space Workplaces can be arranged more closely to the entrance.
• Air screening reduces energy losses and increases comfort in your entrance area.

Your Benefits

• Modular casing concept.
• Optionally available withKaControl
• Installation in suspended ceilings with standard components.

Technology

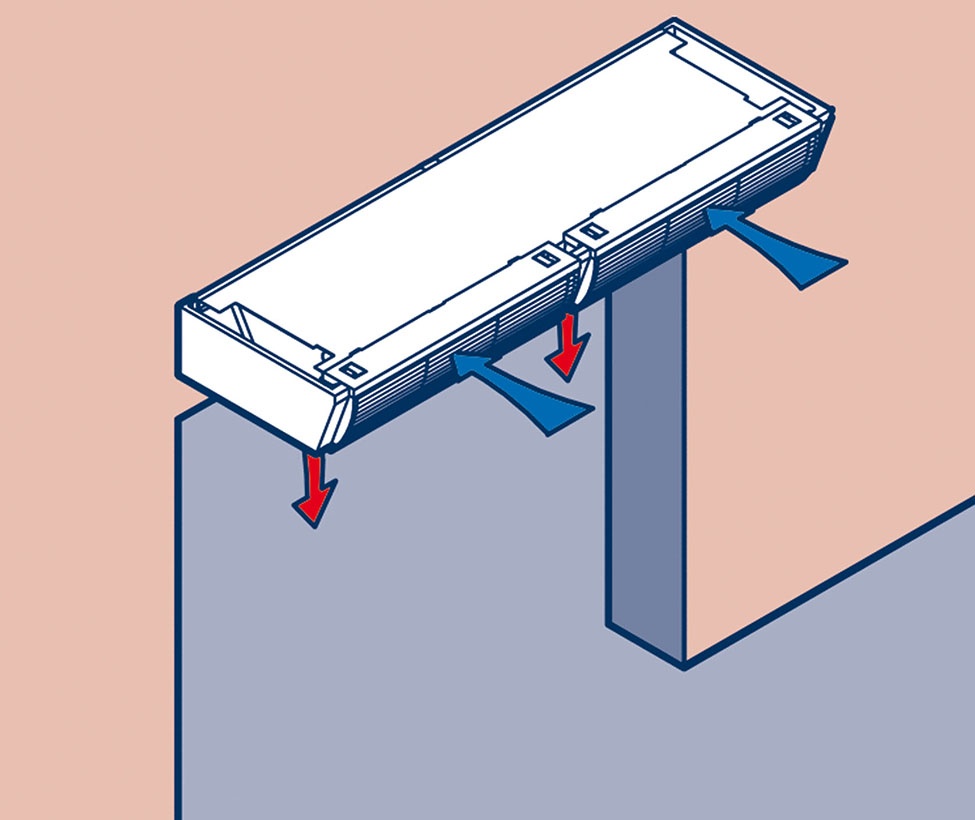

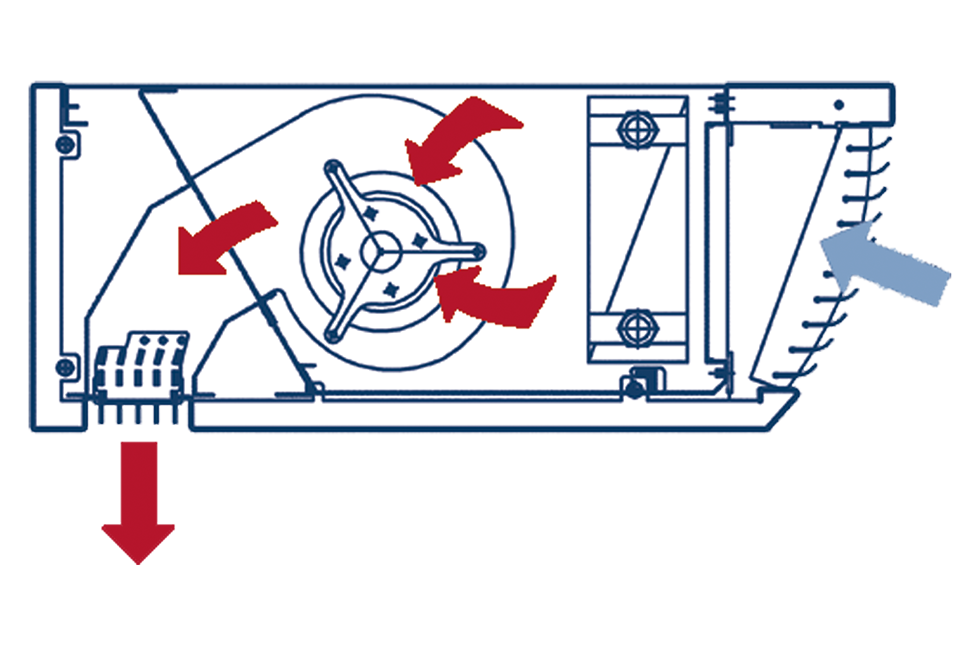

• Air entry from above or from the sides prevents dust formation and swirling (Marilyn Monroe effect!).
• High-performance radial fans for high air output, wired ready for connection, switchable between 5 stages.
• High-performance copper/aluminium heat exchanger.
• Easily removable air filter (grade G 2 in line with DIN EN 779); easy to clean by vacuuming or washing.
• Anti-torsion mechanism for heating connections prevents damage to the heat exchanger when screwing in the valves; valves optionally available as accessories.

Areas of application/installation

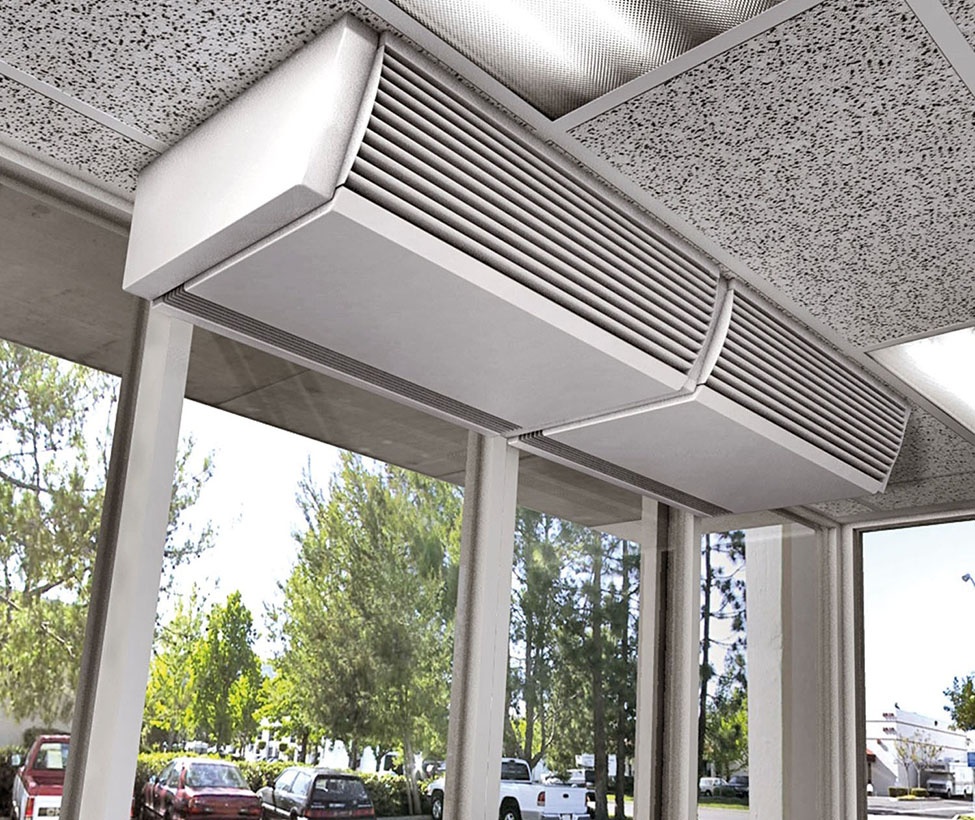

• Versatile use in showrooms and sales floors of all kinds, malls and public buildings.

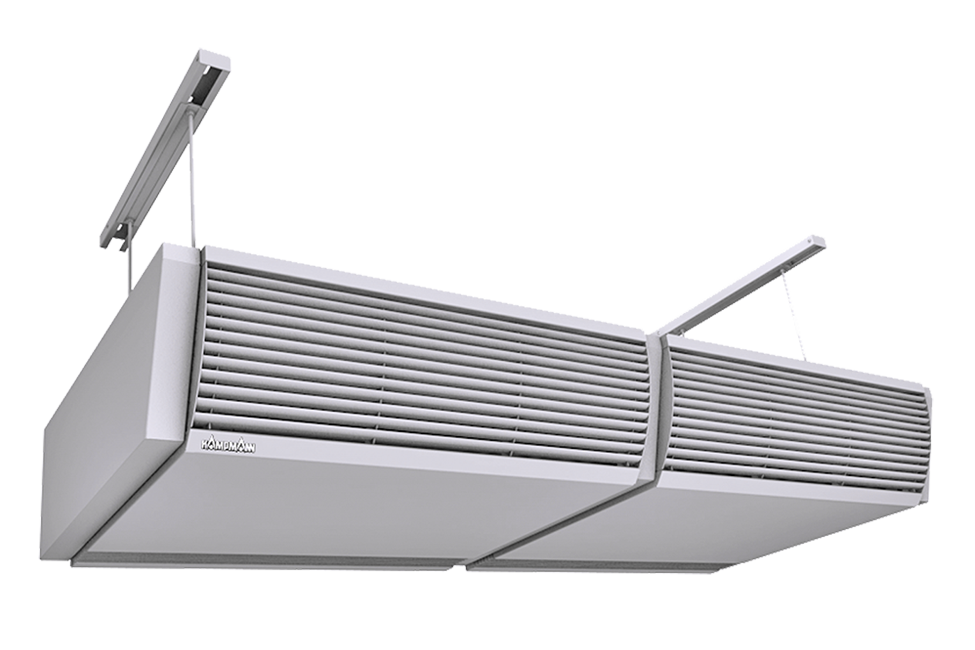

• Wall or ceiling-mounted.
• Modular design enables multiple devices to appear as a single visual unit.
• Installation also possible with casing provided by customer
• Lengths 1.0, 1.5, 2.0, 2.5 and 3.0 m.
• Suitable for mounting heights ranging from 2.3 to 3.0 m

Also good to know

• In summer: Door air curtain operates without heat to support air conditioning.
• KaControl system or electromechanical control possible.
• Integration in KaControl networks or building automation systems, such as BACnet, Modbus or LON possible.
• Special designs, such as vertical unit above doorway, standing or oval standing units on request.
