emcovent decentralised ventilation systems

Any air conditioning solution for enclosed spaces in office buildings and industrial premises requires a coordinated climate control concept that is geared to the needs of the users concerned and the conditions specific to the building in question.

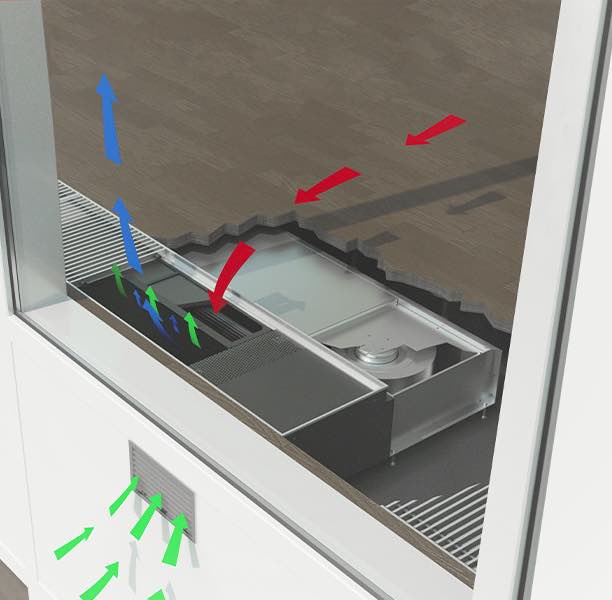

The compact design of decentralised ventilation modules, coupled with the way they can be intelligently integrated into the façade or the floor area near the façade, gives planners and architects the fullest possible flexibility in room planning.

ENQUIRE NOW

LEADERS IN OUR MARKET

Most trusted suppliers for 20 years.

LEADERS IN OUR MARKET

Most trusted suppliers for 20 years.

IRISH GREEN BUILDING COUNCIL

Contributing to LEED Certification.

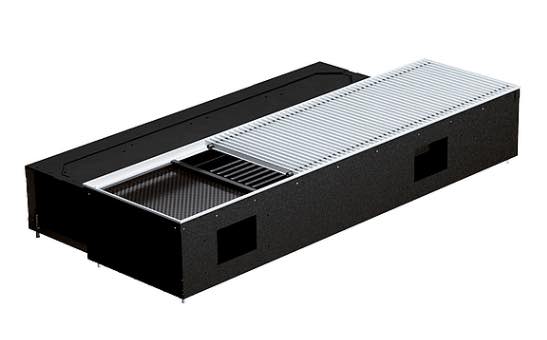

UZA

These underfloor ventilation systems have been designed for ideal room ventilation and temperature controlling according to the room comfort criteria. Due to its very compact design the emcovent can be easily integrated in to the building structure. A visible grid with a width of 345 mm makes this the ideal appliance in buildings with a high architectural standard.

Application Areas
  • Offices and administration rooms
  • Business areas
  • Reception areas
  • Foyers
  • Exhibition rooms
  • Rooms with external air demand
  • Rooms where windows cannot be opened
  • Rooms whose appearance and layout should not be disturbed by heating components
Description
Floor tray Floor tray made from galvanised steel, black coating on both sides, stable, walkable version, suitable for screed and self-supporting installation (false floor), internal height adjustment using adjustment screws, height adjustment with acoustic decoupling for easy tray levelling, frame cover profile made from aluminium, frame profile mounted without visible fixing locations when installed, frame anodised in colour that matches cover grille
Condensate tray integrated stainless steel condensate well, mounted below the heat recovery unit and welded watertight
Convector element Convector element, suitable for water quality in accordance with VDI 2035, made from dimensionally stable aluminium lamellae on copper piping, black coating, with easy-to-assemble connections (3/4-inch Eurokonus) and ventilation device
Ventilation duct housing of the ventilation module made of galvanised sheet steel, faces coated black, version for insertion in empty emcovent housings
Filter External air filter located underneath cover grille for an easy filter replacement, filter class F7 acc. to VDI 6022 (class G3)
Additional description The unit consists of three modules (empty housing, ventilation module, temperature control module). The modular design makes it possible to install the empty well during preliminary building work. Function units with electric components and filters are installed subsequently.
Installation All device components can be maintained quickly and easily, without an inspection opening, by taking out the function units through the cover grid.
Product Benefits
  • Euro-cone valve connection for time-saving valve installation
  • System for heating and cooling
  • Load bearing
  • For use in false floors
  • Property-specific solutions
  • Infinitely adjustable control
  • Low installation depth

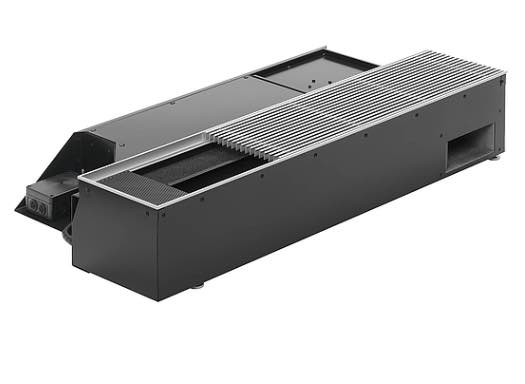

UZS

The emcovent UZS is designed for use in raised double floors. A compact design and an intelligent integration in to the floor area allows for floor to ceiling windows to be easily installed and accessible. A complicated air duct network can be avoided due to a direct external air connection via the facade. A convector element in 2 or 4 row design provides the necessary external air temperature control.

Application Areas
  • Offices and administration rooms
  • Business areas
  • Foyers
  • Exhibition rooms
  • Rooms with external air demand
  • Rooms where windows cannot be opened
  • Rooms whose appearance and layout should not be disturbed by heating components
Description
Floor tray Floor tray made from galvanised steel, black coating on both sides, stable, walkable version, suitable for screed and self-supporting installation (false floor), internal height adjustment using adjustment screws, height adjustment with acoustic decoupling for easy tray levelling, frame cover profile made from aluminium, frame profile mounted without visible fixing locations when installed, frame anodised in colour that matches cover grille
Condensate tray Integrated condensate tray, bonded and waterproof underneath the convector element, with gradient to existing drainage connection provided at the factory
Convector element Convector element, suitable for water quality in accordance with VDI 2035, made from dimensionally stable aluminium lamellae on copper piping, black coating, with easy-to-assemble connections (3/4-inch Eurokonus) and ventilation device
Filter External air filter located underneath cover grille for an easy filter replacement, filter class F7 acc. to VDI 6022 (class G3)
Product Benefits
  • Euro-cone valve connection for time-saving valve installation
  • System for heating and cooling
  • Load bearing
  • For use in false floors
  • Property-specific solutions
  • Infinitely adjustable control
  • Low installation depth

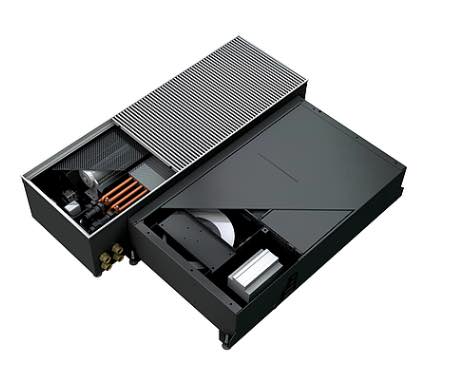

UZAS

These underfloor ventilation systems have been designed for ideal room ventilation and temperature controlling according to the room comfort criteria. Due to its very compact design the emcovent UZAS can be easily integrated in to the building structure. A visible grid with a width of 345 mm makes this the ideal appliance in buildings with a high architectural standard.

Application Areas
  • Offices and administration rooms
  • Business areas
  • Reception areas
  • Foyers
  • Exhibition rooms
  • Rooms with external air demand
  • Rooms where windows cannot be opened
  • Rooms whose appearance and layout should not be disturbed by heating components
Description
Floor tray Floor tray made from galvanised steel, black coating on both sides, stable, walkable version, suitable for screed and self-supporting installation (false floor), internal height adjustment using adjustment screws, height adjustment with acoustic decoupling for easy tray levelling, frame cover profile made from aluminium, frame profile mounted without visible fixing locations when installed, frame anodised in colour that matches cover grille
Condensate tray integrated condensate well welded watertight with drain. If the condensate well is not connected to a condensate mains provided by the customer, a dew point monitoring system can optionally be integrated at additional charge.
Convector element Convector element, suitable for water quality in accordance with VDI 2035, made from dimensionally stable aluminium lamellae on copper piping, black coating, with easy-to-assemble connections (3/4-inch Eurokonus) and ventilation device
Filter External air filter located underneath cover grille for an easy filter replacement, filter class F7 acc. to VDI 6022 (class G3)
Installation The electrical components are fully wired. The connection is effected by the customer using screw-in connectors on the outside of the well. In conjunction with the emcovent fixed connection, the components can be installed without the need to reach inside the well. All assembly work can be carried out from outside the well.
Product Benefits
  • Euro-cone valve connection for time-saving valve installation
  • System for heating and cooling
  • Load bearing
  • For use in false floors
  • Property-specific solutions
  • Infinitely adjustable control
  • Low installation depth
