TIP

Product Description

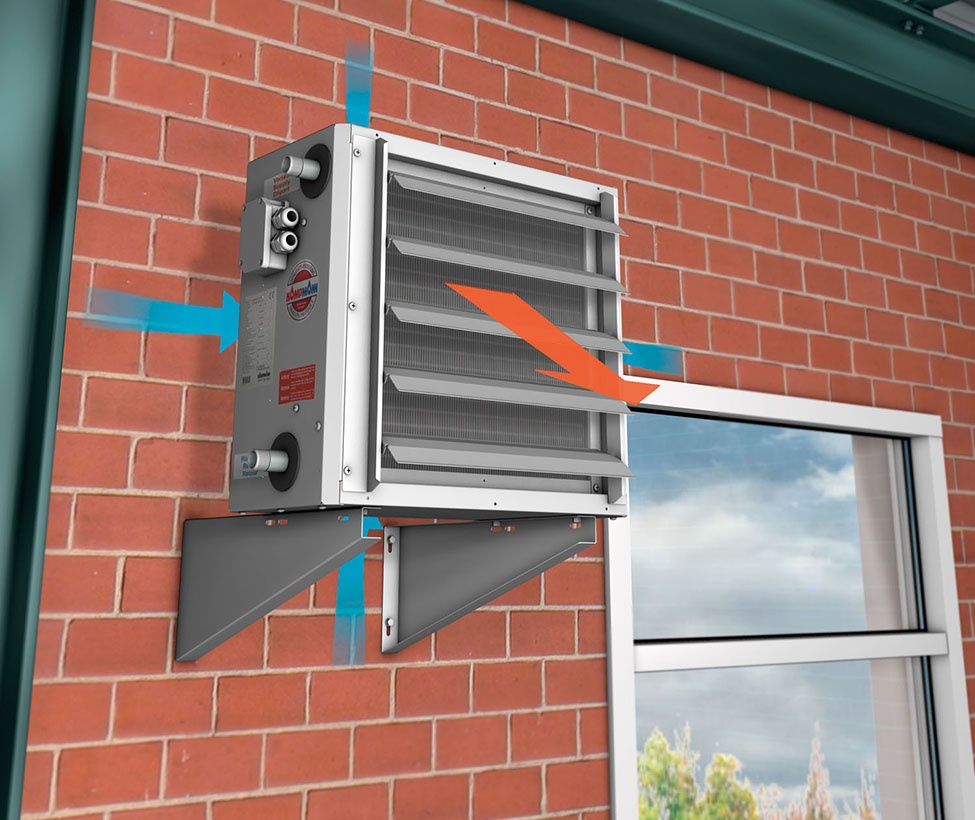

Unit heaters: wall- and ceiling-mounted units. The simple solution.

Key Features

  • TIP units essentially meet the demand for cost-effective and controllable air handling.
  • Neutral in colour, it is robust and strong.
  • For controlled screening of cold air with open doors.
  • Single-row DeWaTIP louvre (wall/ceiling unit) and motor guard are supplied as standard.
  • Infinitely adjustable and can be controlled centrally.

Your Benefits

  • Factory-fitted single row ceiling orwall louvre.
  • Whisper-quiet sickle-blade fanwith optimised full nozzle.
  • Unbeatable in terms of value for

Technology

  • Aerodynamic sickle-blade whisper-quiet cast-aluminium fan with optimised full nozzle.
  • The following models of fan are available:
    • 1-stage, 1-phase sickle-blade whisper-quiet fan 230 V/50 Hz
    • 2-stage, 3-phase sickle-blade whisper-quiet fan 400 V/50 Hz
  • With copper/aluminium heat exchanger, ideal for low temperature systems

Areas of application/installation

  • Production plants, workshops and assembly plants.
  • Industrial and commercial work places.
  • Housing with standard wall/ceiling brackets.
  • Pure recirculating air units without a wide range of fittings

Also good to know

  • Fast delivery service: All two-stage 3-phase and single-stage 1-phase units in all sizes are available ex-stock.
  • Housing self-supporting, completely made of galvanised steel metal.
  • Simple fitting of discharge air-side accessories, such as the two-row louvre and 4-way diffuser.
